Products Manufactured

wel

Welcome to our parts section of our website. We have added a new feature to this page allowing the viewer to see our parts explosion on some assemblies. Just click on the link of the model you are interested for a detailed view of the part exploded, with part numbers and required quantity for the assembly. We shall be updating this page frequently as we build more assemblies on our CAD/CAM system, and will put them up on our website for your convenience. If you have any technical questions, please send us an email.

I.          HOOKS

A.     Web Wilson Hydra Hooks

(40 Ton to 150 Ton)

B.      Cavins BJ Rod Hooks

1.        Model R-20 (20 Ton)

2.        Model R-35 (35 Ton)

C.     Cavins BJ Crane Hooks

1.        Model C-10 (10 Ton)

2.        Model C-25 (25 Ton)



II.                 LINKS

A.     Cavins BJ Toolpusher Links (150 Ton)

(1-3/4¡± X 36¡±, 48¡±, 60¡±, 72¡±, 84¡±, 96¡± & 120¡±)



III.               WIRELINE PUMPS, TUBING BAILERS & JUNK SNATCHERS

A.     Rod Type Sand Pump

1.      Model ¡°5A¡± 1-1/4¡± OD

2.      Model ¡°4A¡± 1-1/2¡± OD

3.      Model ¡°3A¡± 1-3/4¡± OD

4.      Model ¡°2A¡± 2-1/8¡± OD

5.      Model ¡°A¡±   2-5/8¡± OD

6.      Model ¡°B¡±   3-1/8¡± OD

7.      Model ¡°C¡±   3-3/4¡± OD

8.      Model ¡°E¡±   4-1/2¡± OD

B.     Hydrostatic Wireline Bailer

1.      Model ¡°3A¡± 1-3/4¡± OD

2.      Model ¡°2A¡± 2-1/8¡± OD

3.      Model ¡°A¡±   2-5/8¡± OD

4.      Model ¡°B¡±   3-1/8¡± OD

5.      Model ¡°C¡±   3-3/4¡± OD

C.     Hydrostatic Tubing Bailer

1.      Model ¡°B¡± 3-1/16¡± OD (2-3/8¡± EUE 8RD)

2.      Model ¡°C¡± 3.668¡±  OD (2-7/8¡± EUE 8RD)

3.      Model ¡°E¡± 4-1/2¡± OD (3-1/2¡± EUE 8RD)

D.     Turbo Tubing Bailer

1.      Model ¡°B¡± 3-1/8¡±  OD (2-3/8¡± EUE 8RD)

2.      Model ¡°C¡± 3-5/8¡±  OD (2-7/8¡± EUE 8RD)

3.   Model ¡°E¡± 4-1/2¡±  OD (3-1/2¡± EUE 8RD)

E.      Multi-Surge Junk Snatcher

1.      Model ¡°RA¡± 3-3/4¡± OD (2-7/8¡± API REG.)

2.      Model ¡°RB¡± 4-5/8¡± OD (3-1/2¡± API F.H.)

3.      Model ¡°RC¡± 5-3/4¡± OD (4-1/2¡± API F.H.)



IV        CEMENT DUMPS, BRIDGING PLUGS & ROPE SOCKETS

A.     Cement Dumps

1.      Model ¡°2A¡± 1-1/2¡± (Run on 1.900¡± OD Tubing)

2.      Model ¡°A¡± 2¡± (Run on 2-3/8¡± OD Tubing)

3.      Model ¡°B¡± 2-1/2¡± (Run on 2-7/8¡± OD Tubing)

4.      Model ¡°C¡± 3¡± (Run on 3-1/2¡± OD Tubing)

B.     Bridging Plugs

1.      Model ¡°2A¡± 4¡± to 4-3/4¡± Casing

2.      Model ¡°A¡± 5¡± to 7-5/8¡± Casing

3.      Model ¡°B¡± 6-5/8¡± to 10-3/4¡± Casing

4.      Model ¡°C¡± 10-3/4¡± to 16¡± Casing

C.     Quick Change Rope Sockets

1.      Model ¡°Q3A¡± 1-3/4¡± OD (3/4¡± API Sucker Rod Box)

2.      Model ¡°Q2A¡± 2¡± OD (Cavins Cable Tool Connection)

3.      Model ¡°QA¡± 2-1/4¡± OD (Cavins Cable Tool Connection)

4.      Model ¡°QB¡± 2-1/2¡± OD (Cavins Cable Tool Connection)

5.      Model ¡°QC¡± 2-3/4¡± OD (Cavins Cable Tool Connection)



V.        DEPTHOMETERS & ACCESSORIES

A.     Mechanical & Electronic Readout Depthometers

¡¤        Slick Lines .092¡± OD (Piano Wire)

¡¤        Wireline Sizes 3/16¡± to 1-1/8¡± OD

¡¤        Coil Tubing Sizes 3/4¡± to 2-3/8¡± OD

1.      Model ¡°BL¡±

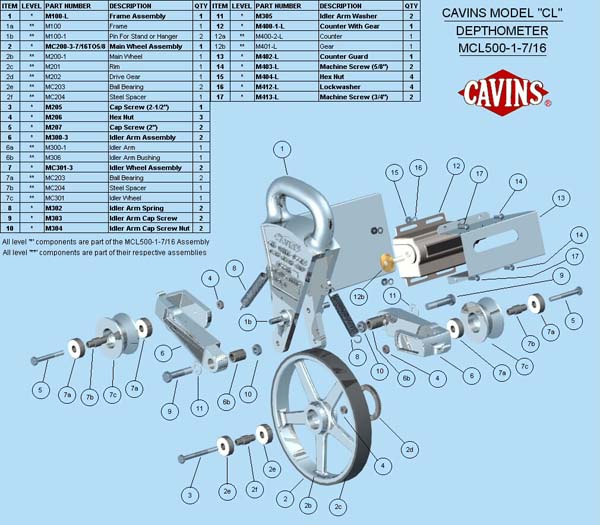

2.      Model ¡°CL¡± (Click this link for an exploded parts view of this item view)

B.     Accessories

1.      Carrying Case

2.      Stand Assembly

3.      Hanger Assembly

4.      Electronic Conversion Kits

5.      Packaged Display Units (With Count, Rate LED Displays and Audible Alarms)



VI.      ELEVATORS

A.     Cavins BJ Elevators

1.      D series side door elevators (Models LLD 65-Ton &  LD-100 Ton)

2.      No-Kink sucker rod elevators (5/8¡± to 1-1/8¡±, 21.5 Tons Capacity)



VII.            MANUAL TONGS

A.     Cavins BJ Snap-On manual tongs

B.     Cavins BJ MS manual tubing tong and MS Back-up tong (6,500 ft.lbs.)

C.     Kelco Fulgrip manual tubing tongs (1,500 ft.lbs. to 5,000 ft.lbs.)

VIII.         POWER TONGS & ACCESSORIES

A.     Cavins BJ Tongs & Back-Ups

1.      Cavins BJ Tubing Tongs

a)      Hydratorq Model RS, BTS, CTS & CH (4,650 ft.lbs. to 6,650 ft.lbs.)

b)      Powairmatic Model SA & BTA (6,5000 ft.lbs.)

c)      Model CH8000 (8,000 ft.lbs.)

d)      Model GT8000 (8,000 ft.lbs.)

2.      Cavins BJ Power Sucker Rod Tong (Models Mark II-VI, 1,180 to 1,850 ft.lbs.)

3.      Cavins BJ Power Tongs Accessories

a)      On-Off device (Tong Retractor)

b)      Sucker Rod Break-out Clamp

B.  Hillman-Kelley Master Tubing Tong & Back-ups

1.      H-K Tubing Tongs

a)      Model 3700-H (6,000 ft.lbs.)

b)      Model 4600-H (6,000 ft.lbs.)

c)      Model 5500-H (7,000 ft.lbs.)

d)      Model 5500-A (7,000 ft.lbs.)

e)      Model 500-C tubing and sucker rod tong (4,000 ft.lbs.)

2.      H-K model hydraulic power supplies

C.  Foster Tongs & Back-ups

1.      Foster Tubing, Casing & Light Drill Pipe Tongs

b)      Model 74-92-R (2,500 ft.lbs.)

c)      Model 58-93-R (6,000 ft.lbs.)

d)      Model 54-93 (12,000 ft.lbs.)

e)      Model 54-02 (18,000 ft.lbs.)

2.      Foster Sucker Rod Tongs

a)      Model 76 (2,500 ft.lbs.)

3.      Foster Tong Accessories

a)      Hydraulic Lifts

b)      Rod Stripper Wrench



IX.              TUBING SPIDERS & ACCESSORIES

A.     Cavins Advance Tubing Spiders

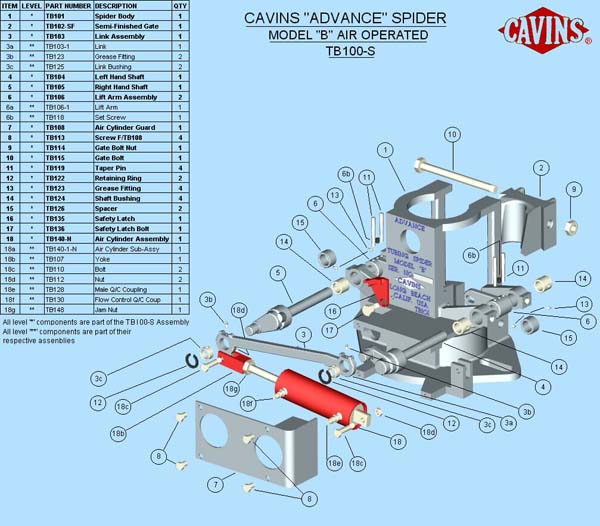

1.      Model ¡°B¡± (55 Ton)  1.315¡± to 3-1/2¡± OD Tubing

(Click this link for an exploded parts view of this item)

2.      Model ¡°C¡± (82.5 Ton)  1.315¡± to 5-1/2¡± OD Tubing & Casing *

(Click this link for an exploded parts view of this item)

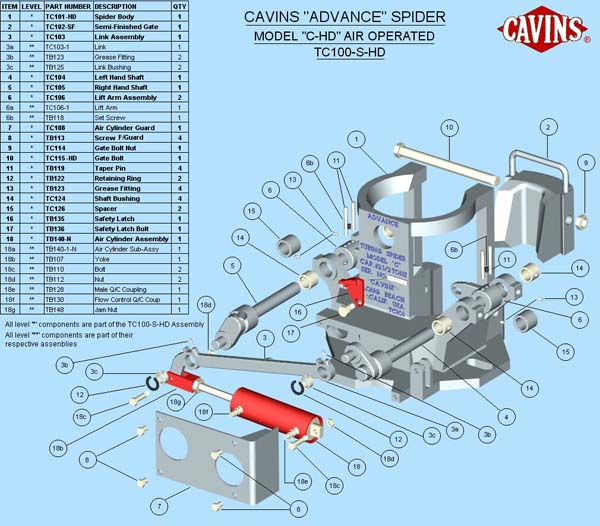

3.      Model ¡°C-HD¡± (125 Ton)  1.315¡± to 5-1/2¡± OD Tubing & Casing *

(Click this link for an exploded parts view of this item)

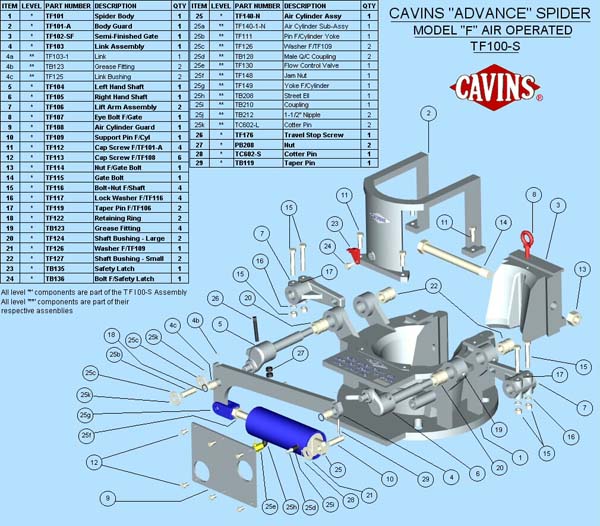

4.      Model ¡°F¡± (200 Ton)  2-3/8¡± to 8-5/8¡± OD Tubing & Casing *

(Click this link for an exploded parts view of this item)

5.      Model ¡°G¡± (350 Ton)  2-3/8¡± to 13-3/8¡± OD Tubing & Casing

B.     Cavins BJ Tubing Spiders

1.      Model 50-A & 50-M (50 Ton) 1.315¡± to 3-1/2¡± OD Tubing

2.      Model 100-A & 100-M  (100 Ton) 2-3/8¡± to 3-1/2¡± OD Tubing

C.     Baash-Ross Tubing Spiders

1.      Model TS-100  1.050¡± to 5-1/2¡± OD Tubing & Casing

2.      Open End Tubing Spider 2-3/8¡± to 3-1/2¡± OD Tubing

D.     Web Wilson Tubing Spider

1.      Model PM  1.315¡± to 3-1/2¡± OD Tubing

*These models also offered in inverted style for snubbing operations.



X.                 WIRELINE, ROD AND TUBING STRIPPING EQUIPMENT

A.     Saunders Blow Out Preventers

1.      Model ¡°A¡± 3¡± BOP (3,000 PSI Working Pressure)

2.      Model ¡°B¡± 4¡± BOP (3,000 PSI Working Pressure)

B.     Saunders Manual & Hydraulic Ball Lock Oil Savers

For 3/16¡± to ¾¡± OD Wireline

1.      Manual & Hydraulic Bonnets with

3¡±, 4¡±, 6-5/8¡±, 7¡± & 8-5/8¡± bottom connections

C.     Accessories

1.      Model S-HP100 hydraulic single stage hand pump

2.      Model S-HP200 hydraulic dual stage hand pump

3.      Model S-BP100 BOP Accumulator

4.      25¡® & 50¡¯ Hydraulic hoses



XI.              MISCELLANEOUS

A.     Cavins BJ Convertible Cat-Line Grip

B.     Baash-Ross Type ¡®T¡¯ Safety Clamp (1-1/8¡± to 4-1/2¡± OD Pipe)

C.     HKB-35 hydraulic power supplies

D.     Saunders Conduit Seal (For  ¾¡±  to 1-3/8¡± OD electric submersible cable)

E.      Hydraulic Hose Connections

F.      Bent Orienting Subs for Directional Drilling



Copyright © 2000 Cavins Oil Well Tools. All rights reserved.
Revised 09/20/2002
