Text Box: TECHNICAL MANUAL


















Text Box: KELCO  “FULGRIP”
 TUBING TONGS





























































Text Box: ORDERING, OPERATING AND MAINTENANCE
WITH ILLUSTRATED PARTS LIST

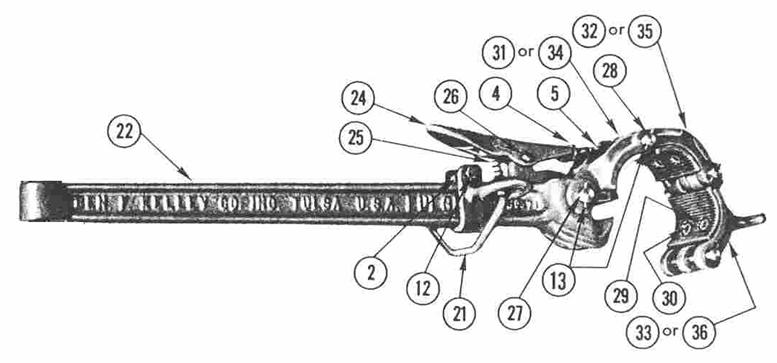

Parts List - Types K-20 and K-25













Item No.

No. Req.

Old Part No.

New Part No.

Description

Approx. Wt./Lb.

1



0506891

8527-5014

K-20* Tong Assembly less dies

20

1



0506892

8527-5016

K-25* Tong Assembly less dies

21

2

1

0508107

900020-63

3/8" X 2-1/4" Hex Head Cap Screw



4

1

0508121

900199-4

3/8" Hex Jam Nut



5

1

0506780

8527-5144

3/8" X 1-1/2" Thumb Screw



12

1

0507472

902392-5

3/8" Flexlock Nut



13

8

0507491

904685-71

5/32" X 1" Springlok for all pins on K-20 & K-25



21

1

0506888

8527-5018-03

Tong Rollover Hanger K-20 & K-25

1

22

1

0506772

8527-5022

Tong Handle K-20 & K-25

9-3/4

24

1

0506887

8527-5054

Adjustable tong latch with thumb screw and nut

3/4

25

1

0514415

8527-5012

Latch Spring



26

1

0508131

900645-50

Latch Rivet



27

1

0506773

8527-5024

Tong Handle Pin

1/3

28

3

0506774

8527-5025

Tong Head Pin

1/8

29

6

0506781

8527-5013

Tong Die Bushing



30

6

0508112

902224-25

Tong Die Screw



31

1

0506775

8527-5026

K-20 Handle Jaw

2

32

1

0506776

8527-5027

K-20 Center Jaw

1-1/2

33

1

0506777

8527-5028-03

K-20 Latch Jaw

2

34

1

0506819

8527-5032

K-25 Handle Jaw

2-1/8

35

1

0506820

8527-5033

K-25 Center Jaw

1-3/4

36

1

0506821

8527-5034-03

K-25 Latch Jaw

2-1/8

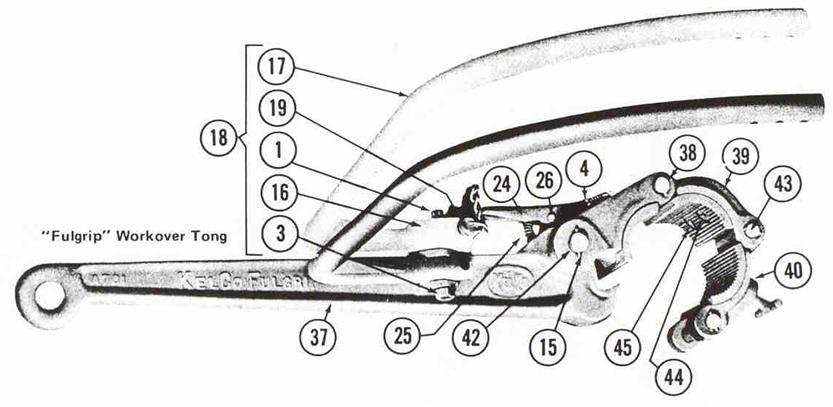

Parts List - Types K-30, K-30A and K-30B













Item No.

No. Req.

Old Part No.

New Part No.

Description

Approx. Wt./Lb.





0506893

8527-5035

K-30* Tong Assembly less hanger and dies

48





0514431

8527-5036

K-30A* Tong Assembly less dies w/ standard hanger

61





0514430

8527-5037

K-30B* Tong Assembly less dies w/ rollover hanger

64

1

2 for K-30B











1 for K-30A



0508109

900012-84

1/2" X 2-3/4" N.C. Hex Head Cap Screw

1/8

3

1

0508123

900160-5

1/2" Hex Nut



4

1

0508121

8527-5144

3/8" x 1-1/2" Thumb Screw



15

2

0507492

904685-105

for Handle Pin



16

1

0506854

8527-5038-03

K-30B Tong Rollover Block

2-1/2

17

1

0506853

8527-5042-03

K-30A & B Tong Hanger

13

18

1

0506889

8527-5045

K-30B Tong Rollover Hanger Assembly

16

19

1

0506855

8527-5040-03

K-30B Tong Rollover Lock Pin

3/8

24

1

0506887

8527-5054

Adjustable Tong Latch with











Thumbscrew and nut

3/4

25

1

0514415

8527-5012

Latch Spring



26

1

0508131

900645-50

Latch Rivet



30

6

0508112

902224-47

Tong Die Screw



37

1

0506845

8527-5047

K-30 A & B Tong Handle

24

38

1

0506848

8527-5048

K-30 A & B Handle Jaw

8

39

1

0506849

8527-5049

K-30 A & B Center Jaw

5-1/2

40

1

0506850

8527-5050-03

K-30 A & B Latch Jaw



42

1

0506846

8527-5052

K-30 A & B Handle Pin



43

3

0506847

8527-5053

K-30 A & B Head Pin

5-3/4

44

6

0506852

8527-5055

K-30 A & B Tong Die Brushing

3/4

45

6

0508481

902224-47

K-30 A & B Tong Die Screw

1/2





































































Copyright © 2000 Cavins Oil Well Tools. All rights reserved.
Revised 09/20/2002
